Pressure Washer Wand Accessories

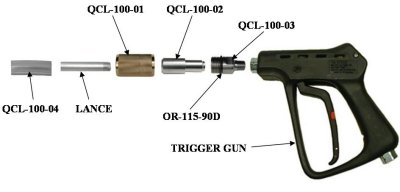

                   PART NUMBER QCL-100-00

   $45.95 less gun + lance





 PART NUMBER                                       DESCRIPTION
QCL-100-01
KNURLED BRASS NUT
QCL-100-02
STAINLESS STEEL LANCE PLUG
QCL-100-03
STAINLESS STEEL GUN ADAPTER
QCL-100-04
NEOPRENE STOP TUBE
OR-112-U90
ADAPTER O-RING (INSIDE GUN ADAPTER, NOT SHOWN)
OR-115-90D
DIRT SEAL O-RING

This Quick Change Lance System is for the equipment operator that desires the very best available. When the system is assembled it is rigid and durable. The different length lances are changed by unscrewing the brass nut and screwing another lance onto the gun adapter. The gun requires a Gun Adapter & each lance requires one each of a Stop Tube, Knurled Brass Nut and Lance Plug.

ASSEMBLY:

  1. A Gun Adapter part number QCL-100-03 is screwed into the gun
  2. A Neoprene Stop Tube part number QCL-100-04 is then pushed onto each lance with approximately 1” of lance end exposed. The purpose of this tube is to keep the nut from sliding down the lance when the assembly is removed from the gun.
  3. Then slide a Knurled Brass Nut part number QCL-100-01 onto each lance up to the stop tube.
  4. Each lance is then screwed into a Lance Plug part number QCL-100-02.
  5. The desired lance assembly is then screwed onto the Gun Adapter that was previously installed into the trigger gun.
